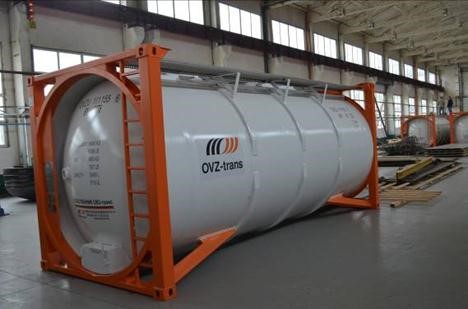

Контейнер-цистерна типа UN T11_Т11-25Н-01
Контейнер-цистерна типа UN T11
Модель Т11-25Н-01
Основные виды
Контейнер-цистерна содержит следующие основные элементы:
1 - цистерна,
2 - торцевые рамы,
3 - подкосы крепления цистерны к торцевым рамам с подкладными листами,
4 – обечайки крепления цистерны к торцевым рамам,
5 – шпангоуты (кольца жесткости) цистерны,
6 – термометр,
7 –опоры крепления трапов площадок обслуживания,
8 –площадки обслуживания,
9 ,10 – отсеки с крышками,
11 - люк-лаз с крышкой,
12 – предохранительный клапан,
13 – верхнее устройство налива (слива) груза,
14 – сифонная труба верхнего устройства налива (слива) груза с фиксатором,
15 - нижнее устройство налива (слива) груза,
16 – трубы отвода из отсеков пролитого груза,
17 – клапан воздушной (газовой) магистрали,
18 – манометр,
19 – скобы-ручки,
20 - верхние угловые фитинги,
21 - нижние угловые фитинги,
22 – стойки торцевых рам,
23 – верхние балки торцевых рам,
24 – нижние балки торцевых рам,
25 – опорные кольца торцевых рам,
26 – лестницы,
27 – укрепляющие пластины торцевых рам,
28 – упоры подкосов,
29 – опорные пластины торцевых рам,
30 – пенал для документов,
31 – отсек нижнего устройства слива (налива) груза,
32 – пластина для заземления контейнера,
33 – винт для заземления контейнера,
34 – табличка с данными по цистерне,
35 – табличка о допущении по безопасности (КБК),
36 - табличка о допущении перевозки контейнера под таможенной пломбой (КТК),
37 - эмблема Российского морского регистра судоходства
Перечень грузов, допущенных к перевозке в контейнерах-цистернах моделей Т11-25Н и Т11-25Н-01
Наименование груза |
Номер ООН груза
|
Класс опасности груза |
Дополни- тельный знак опасности |
Плотность груза, т/м3 |
Номер инструкции ООН и дополнительные требования к контейнеру |
1 |
2 |
3 |
4 |
5 |
6 |
1,1-DICHLOROETHANE |
2362 |
3 |
|
1.17 |
T4, TP1 |
1,1-DIMETHOXYETHANE |
2377 |
3 |
|
0.85 |
T7, TP1 |
1,2,3,6-TETRAHYDROPYRIDINE |
2410 |
3 |
|
0.89 |
T4, TP1 |
1,2-BUTYLENEOXIDE |
3022 |
3 |
|
1.02 |
T4, TP1 |
1,2-DIMETHOXYETHANE |
2252 |
3 |
|
0.85 |
T4, TP1 |
1,2-EPOXY-3-ETHYLOXY -PROPANE |
2752 |
3 |
|
0.86 |
T2, TP1 |
1,3,5-TRIMETHYLBENZENE |
2325 |
3 |
|
0.87 |
T2, TP1 |
1,3-DIMETHYLBUTYLAMINE |
2379 |
3 |
8 |
0.72 |
T7, TP1 |
1-BROMO-3-METHYLBUTANE |
2341 |
3 |
|
1.22 |
T2, TP1 |
CHLORBUTANES |
1127 |
3 |
|
0.89 |
T4, TP1 |
1-ETHYL PIPERIDINE |
2386 |
3 |
8 |
0.82 |
T7, TP1 |
1-METHYLPIPERIDINE |
2399 |
3 |
8 |
0.82 |
T7, TP1 |
1-PENTOL |
2705 |
8 |
|
0.81 |
T7, TP2 |
2,3-DIHYDROPYRAN |
2376 |
3 |
|
0.89 |
T4, TP1 |
2,3-DIMETHYL BUTANE |
2457 |
3 |
|
0.66 |
T7, TP1 |
2,4-TOLUYLENE DIAMINE |
1709 |
6.1 |
|
1.03 |
T4, TP3 |
2-(2-AMINOETHOXY)-ETHANOL |
3055 |
8 |
|
1.02 |
T4, TP1 |
2-BROMO BUTANE |
2339 |
3 |
|
1.26 |
T4, TP1 |
2-BROMO PENTANE |
2343 |
3 |
|
1.22 |
T4, TP1 |
2-CHLOR BUTANES |
1127 |
3 |
|
0.87 |
T4, TP1 |
2-CHLORO PROPANE |
2356 |
3 |
|
0.86 |
T11, TP2, TP13 |
2-CHLORO PROPENE |
2456 |
3 |
|
0.92 |
T11, TP2 |
2-CHLORO PYRIDINE |
2822 |
6 |
|
1.21 |
T7, TP2 |
2-DIMETHYL AMINO ACETO NITRILE |
2378 |
3 |
6.1 |
0.68 |
T7, TP1 |
2-ETHYL ANILINE |
2273 |
6.1 |
|
0.99 |
T4, TP1 |
2-ETHYL BUTANOL |
2275 |
3 |
|
0.83 |
T2, TP1 |
2-ETHYL BUTYR ALDEHYDE |
1178 |
3 |
|
0.81 |
T4, TP1 |
2-ETHYL HEXYL AMINE |
2276 |
8 |
3 |
0.78 |
T4, TP1 |
2-METHYL FURAN |
2301 |
3 |
|
0.91 |
T4, TP1 |
2-METHYL-1-BUTENE |
2459 |
3 |
|
0.65 |
T11, TP2 |
2-METHYL-2-BUTENE |
2460 |
3 |
|
0.66 |
T7, TP1 |
2-METHYL-5-ETHYL PYRIDINE |
2300 |
6.1 |
|
0.92 |
T4, TP1 |
2-METHYL PENTAN-2-OL |
2560 |
3 |
|
0.81 |
T2, TP1 |
3,3-DIETHOXY PROPENE |
2374 |
3 |
|
0.77 |
T4, TP1 |
3-CHLORO PROPANOL-1 |
2849 |
6 |
|
1.12 |
T4, TP1 |
3-METHYL BUTAN-2-1 |
2397 |
3 |
|
0.80 |
T4, TP1 |
3-TRIFLUORO METHYL ANILINE |
2948 |
6.1 |
|
1.17 |
T7, TP2 |
4-METHOXY-4-METHYL-PENTAN -2-ONE |
2293 |
3 |
|
0.96 .9603 |
T2, TP1 |
5-METHYL HEXAN-2-1 |
2302 |
3 |
|
0.82 |
T2, TP1 |
ACETAL |
1088 |
3 |
|
0.83 |
T4, TP1 |
ACETALDEHYDE |
1089 |
3 |
|
0.78 |
T11, TP2, TP7 |
ACETALDEHYDE OXIME |
2332 |
3 |
|
0.97 |
T4, TP1 |
ACETIC ACID УКСУСНАЯ КИСЛОТА (водные растворы с концентрацией больше 25%) |
2790 |
8 |
|
1.05 |
T7, TP2 |
ACETIC ACID,GLACIAL УКСУСНАЯ КИСЛОТА,ЛЕДЯНАЯ (водный раствор с концентрацией больше 80%) |
2789 |
8 |
3 |
1.05 |
T7, TP2 |
ACETIC ANHYDRIDE |
1715 |
8 |
3 |
1.08 |
T7, TP2 |
ACETONE АЦЕТОН |
1090 |
3 |
|
0.79 |
T4, TP1 |
ACETONE OILS АЦЕТОНОВЫЕ МАСЛА |
1091 |
3 |
|
1.00 |
T4, TP1, TP8 |
ACETYL METHYL CARBINOL |
2621 |
3 |
|
1.00 |
T2, TP1 |
ACROLEIN DIMER, STABILIZED |
2607 |
3 |
|
0.84 |
T2, TP1 |
ACRYLIC ACID, INHIBITED |
2218 |
8 |
|
1.06 |
T7, TP2 |
ALCOHOLS, N.O.S. СПИРТЫ, Н.У.К. |
1987 |
3 |
|
0.79 |
T7, TP2, TP8, TP28 |
ALDEHYDES,N.O.S. АЛЬДЕГИДЫ, Н.У.К. |
1989 |
3 |
|
1.05 |
T4, TP1, TP29 |
SULPHONIC ACID ALKYLAMINES N.O.S.(POLYALKYLAMINES) |
2733 |
3 |
8 |
0.76 |
T11, TP1, TP27 |
ALLYL ACETATE |
2333 |
3 |
6.1 |
0.94 |
T7, TP1, TP13 |
ALLYL ETHYL ETHER |
2335 |
3 |
6.1 |
0.77 |
T7, TP1, TP13 |
ALLYL TRICHLORO SILANE |
1724 |
8 |
3 |
1.09 |
T7, TP2, TP13 |
ALPHA-METHYL VALER ALDEHYDE |
2367 |
3 |
|
0.81 |
T4, TP1 |
ALPHA-METHYL BENZYL ALCOHOL |
2937 |
6.1 |
|
0.87 |
T4, TP1 |
ALPHA-PINENE |
2368 |
3 |
|
0.86 |
T2, TP1 |
AMMONIA SOLUTION ВОДНЫЕ РАСТВОРЫ АММИАКА концентрация(10-35)% |
2672 |
8 |
|
0.77 |
T7, TP1 |
AMMONIUM DINITRO-ORTO -CRESOLS |
1843 |
6.1 |
|
1.05 |
T3, TP33 |
AMYL BUTYRATES |
2620 |
3 |
|
0.87 |
T2, TP1 |
AMYL ACETATES |
1104 |
3 |
|
0.88 |
T2, TP1 |
AMYL ACID PHOSPHATE |
2819 |
8 |
|
0.95 |
T4, TP1 |
AMYL ALCOHOLS |
1105 |
3 |
|
0.81 |
T2, TP1 |
AMYL AMINE |
1106 |
3 |
8 |
0.76 |
T7, TP1 |
AMYL CHLORIDES |
1107 |
3 |
|
0.88 |
T4, TP1 |
AMYLENE NORMAL |
1108 |
3 |
|
1.04 |
T11, TP2 |
AMYL FORMATES |
1109 |
3 |
|
0.89 |
T2, TP1 |
AMYL MERCAPTAN |
1111 |
3 |
|
0.86 |
T4, TP1 |
AMYL METHYL KETONE |
1110 |
3 |
|
0.82 |
T2, TP1 |
AMYL NITRATE |
1112 |
3 |
|
0.85 |
T2, TP1 |
AMYL NITRITE |
1113 |
3 |
|
0.85 |
T4, TP1 |
ANILINE |
1547 |
6.1 |
|
1.020 |
T7, TP2 |
ANISOLE |
2222 |
3 |
|
1.00 |
T2, TP1 |
ANISOYL CHLORIDE |
1729 |
8 |
|
1.11 |
T3, TP33 |
BENZENE БЕНЗОЛ |
1114 |
3 |
|
0.88 |
T4, TP1 |
BENZONITRILE |
2224 |
6.1 |
|
1.01 |
T7, TP2 |
BENZOTRIFLUORIDE |
2338 |
3 |
|
1.02 |
T4, TP1 |
BENZYL DIMETHYL AMINE |
2619 |
8 |
3 |
0.93 |
T7, TP2 |
BENZYLIDENE CHLORIDE |
1886 |
6.1 |
|
1.26 |
T7, TP2 |
BROMOMETHYL PROPANES |
2342 |
3 |
|
1.26 |
T4, TP1 |
BUTANEDIONE |
2346 |
3 |
|
1.00 |
T4, TP1 |
BUTANOLS |
1120 |
3 |
|
0.81 |
T2, TP1 |
BUTYL ACRYLATE |
2348 |
3 |
|
0.91 |
T2, TP1 |
BUTYL BENZENES |
2709 |
3 |
|
1.00 |
T2, TP1 |
BUTYL MERCAPTAN |
2347 |
3 |
|
0.86 |
T4, TP1 |
BUTYL METHYL ETHER |
2350 |
3 |
|
0.76 |
T4, TP1 |
BUTYL NITRITES |
2351 |
3 |
|
1.05 |
T2, TP1 |
BUTYL PROPIONATE |
1914 |
3 |
|
0.78 |
T2, TP1 |
BUTYL TOLUENES |
2667 |
6.1 |
|
0.94 |
T4, TP1 |
BUTYL VINYL ETHER |
2352 |
3 |
|
1.00 |
T4, TP1 |
BUTYL ACETATES |
1123 |
3 |
|
0.86 |
T2, TP1 |
BUTYL ACID PHOSPHATE |
1718 |
8 |
|
0.97 |
T4, TP1 |
BUTYL AMINE |
1125 |
3 |
8 |
0.74 |
T7, TP1 |
BUTYL TRICHLORO SILANE |
1747 |
8 |
3 |
1.24 |
T7, TP2, TP13 |
BUTYR ALDEHYDE |
1129 |
3 |
|
0.82 |
T4, TP1 |
BUTYR ALDOXIME |
2840 |
3 |
|
0.92 |
T2, TP1 |
BUTYRIC ACID МАСЛЯНАЯ КИСЛОТА |
2820 |
8 |
|
0.96 |
T4, TP1 |
BUTYRIC ANHYDRIDE |
2739 |
8 |
|
0.98 |
T4, TP1 |
BUTYRO NITRILE |
2411 |
3 |
6.1 |
0.79 |
T7, TP1, TP13 |
CAMPHOR OIL КАМФОРНОЕ МАСЛО |
1130 |
3 |
|
1.00 |
T2, TP1 |
CAPROIC ACID КАПРОНОВАЯ КИСЛОТА |
2829 |
8 |
|
0.93 |
T4, TP1 |
CHLORO ANILINES |
2019 |
6.1 |
|
1.21 |
T7, TP2 |
CHLORO BENZENE |
1134 |
3 |
|
1.11 |
T2, TP1 |
CHLORO BENZO TRIFLUORIDES |
2234 |
3 |
|
1.02 |
T2, TP1 |
CHLORO PHENOLS |
2021 |
6.1 |
|
1.24 |
T4, TP1 |
CHLORO TOLUENES |
2238 |
3 |
|
1.08 |
T2, TP1 |
CRESOLS |
2076 |
6.1 |
|
1.05 |
T7, TP2 |
CYCLO HEPTANE |
2241 |
3 |
|
0.81 |
T4, TP1 |
CYCLO HEPTATRIENE |
2603 |
3 |
6.1 |
0.80 |
T7, TP1, T13 |
CYCLO HEPTENE |
2242 |
3 |
|
0.82 |
T4, TP1 |
CYCLO HEXANE |
1145 |
3 |
|
0.78 |
T4, TP1 |
CYCLO HEXANONE |
1915 |
3 |
|
0.95 |
T2, TP1 |
CYCLO HEXENE |
2256 |
3 |
|
0.81 |
T4, TP1 |
CYCLO HEXYL ACETATE |
2243 |
3.3 |
|
0.94 |
T2, TP1 |
CYCLO HEXYL AMINE |
2357 |
8 |
3 |
0.87 |
T7, TP2 |
CYCLO HEXYL MERCAPTAN |
3054 |
3 |
|
0.94 |
T2, TP1 |
CYCLO PENTANE |
1146 |
3 |
|
0.75 |
T7, TP1 |
CYCLO PENTANOL |
2244 |
3 |
|
0.95 |
T7, TP1 |
CYCLO PENTANONE |
2245 |
3 |
|
0.94 |
T2, TP1 |
CYCLO PENTENE |
2246 |
3 |
|
0.77 |
T7, TP2 |
CYMENES |
2046 |
3 |
|
0.86 |
T2, TP1 |
DECA HYDRO NAPHTHALENE |
1147 |
3 |
|
0.93 |
T2, TP1 |
DIBUTYL AMINE |
2248 |
8 |
3 |
0.77 |
T7, TP2 |
DIAMYL AMINE |
2841 |
6.1 |
3 |
1.00 |
T4, TP1 |
DIACETONE ALCOHOL |
1148 |
3 |
|
0.96 |
T2, TP1 |
DIALLYL AMINE |
2359 |
3 |
8 |
1.00 |
T7, TP1 |
DIALLYL ETHER |
2360 |
3 |
6.1 |
0.81 |
T7, TP1, TP13 |
DIBUTYL AMINO ETHANOL |
2873 |
6.1 |
|
0.88 |
T4, TP1 |
DIBUTYL ETHERS |
1149 |
3 |
|
0.77 |
T2, TP1 |
DICHLO ROACETYL CHLORIDE |
1765 |
8 |
|
1.11 |
T7, TP2 |
DICHLORO ETHYLENE |
1150 |
3 |
|
1.26 |
T7, TP2 |
DICHLORO ETHYL ETHER |
1916 |
6.1 |
3 |
1.22 |
T7, TP2 |
DICHLORO ISOPROPYL ETHER |
2490 |
6.1 |
|
1.11 |
T7, TP2 |
DICHLORO PENTANES |
1152 |
3 |
|
1.09 |
T2, TP1 |
DICHLORO PHENYL TRICHLORO SILANE |
1766 |
8 |
|
1.22 |
T7, TP2, TP13 |
DICHLORO PROPENE |
2047 |
3 |
|
1.21 |
T4, TP1 |
DICYCLO HEXYL AMINE |
2565 |
8 |
|
0.82 |
T4, TP1 |
DICYCLO PENTADIENE |
2048 |
3 |
|
0.98 |
T2, TP1 |
DIETHOXY METHANE |
2373 |
3 |
|
0.83 |
T4, TP1 |
DIETHYL CARBONATE |
2366 |
3 |
|
0.98 |
T2, TP1 |
DIETHYL SULPHIDE |
2375 |
3 |
|
1.04 |
T7, TP1, TP13 |
DIETHYL AMINE |
1154 |
3 |
8 |
0.72 |
T7, TP1 |
DIETHYL AMINO ETHANOL |
2686 |
3 |
|
0.88 |
T7, TP2 |
DIETHYL AMINO PROPYL AMINE |
2684 |
8 |
3 |
0.76 |
T4, TP1 |
DIETHYL BENZENE |
2049 |
3 |
|
0.88 |
T2, TP1 |
DIETHYL DICHLORO SILANE |
1767 |
8 |
3 |
1.05 |
T7, TP2, TP13 |
DIETHYLENE TRIAMINE |
2079 |
8 |
|
1.00 |
T7, TP2 |
DIETHYL ETHER |
1155 |
3 |
|
0.71 |
T11, TP2 |
DIETHYL KETONE |
1156 |
3 |
|
0.82 |
T4, TP1 |
DIETHYL SULPHATE |
1594 |
6.1 |
|
1.18 |
T7, TP2 |
DIISOBUTYL AMINE |
2361 |
3 |
8 |
0.75 |
T4, TP1 |
DIISOBUTYLENE |
2050 |
3 |
|
0.72 |
T4, TP1 |
DIISOBUTYL KETONE |
1157 |
3 |
|
0.800 |
T2, TP1 |
DIISOPROPYL AMINE |
1158 |
3 |
8 |
0.72 |
T7, TP1 |
DIISOPROPYL ETHER |
1159 |
3 |
|
0.73 |
T4, TP1 |
DIMETHYL AMINE |
1160 |
3 |
|
0.68 |
T7, TP1 |
DIMETHYL CARBONATE |
1161 |
3 |
|
1.07 |
T4, TP1 |
DIMETHYL DISULPHIDE |
2381 |
3 |
|
1.06 |
T4, TP1 |
DIMETHYL-N-PROPYLAMINE |
2266 |
3 |
8 |
0.76 |
T7, TP2, TP13 |
DIMETHYL AMINE |
1160 |
3 |
8 |
0.68 |
T7, TP1 |
DIMETHYL CYCLO HEXANES |
2263 |
3 |
|
0.78 |
T4, TP1 |
DIMETHYL ETHANOL AMINE |
2051 |
3 |
|
0.89 |
T7, TP2 |
DINITROTOLUENES |
2038 |
6.1 |
|
1.28 |
T7, TP2 |
DIOXANE |
1165 |
3 |
|
1.03 |
T4, TP1 |
DIOXOLANE |
1166 |
3 |
|
1.000 |
T4, TP1 |
DIPENTENE |
2052 |
3 |
|
0.84 |
T2, TP1 |
DIPHENYL DICHLORO SILANE |
1769 |
8 |
3 |
1.22 |
T7, TP2, TP13 |
DIPROPYL KETONE |
2710 |
3 |
|
0.82 |
T2, TP1 |
DIPROPYL AMINE |
2383 |
3 |
8 |
0.74 |
T7, TP1 |
DIPROPYL ETHER |
2384 |
3 |
|
0.74 |
T4, TP1 |
DIVINYL ETHER |
1167 |
3 |
|
0.77 |
T11, TP2 |
EPICHLOROHYDRIN |
2023 |
6.1 |
3 |
1.20 |
T7, TP2, TP13 |
ETHANOL |
1170 |
3 |
|
0.79 |
T4, TP1 |
ETHANOL AMINE |
2491 |
8 |
|
1.02 |
T4, TP1 |
ETHYL CROTONATE |
1862 |
3 |
|
0.98 |
T4, TP2 |
ETHYL METHACRYLATE |
2277 |
3 |
|
0.91 |
T4, TP1 |
ETHYL PROPYL ETHER |
2615 |
3 |
|
0.88 |
T4, TP1 |
ETHYL-2-CHLOROPROPIONATE |
2935 |
3 |
|
1.11 |
T2, TP1 |
ETHYL ACETATE |
1173 |
3 |
|
1.10 |
T4, TP1 |
ETHYL ACRYLATE |
1917 |
3 |
|
0.92 |
T4, TP1 |
ETHYL AMINE (водные растворы) |
2270 |
3 |
8 |
1.03 |
T7, TP1 |
ETHYLAMYL KETONE |
2271 |
3 |
|
0.83 |
T2, TP1 |
ETHYL BENZENE |
1175 |
3 |
|
0.87 |
T4, TP1 |
ETHYL BORATE |
1176 |
3 |
|
0.86 |
T4, TP1 |
ETHYL BUTYL ACETATE |
1177 |
3 |
|
0.88 |
T2, TP1 |
ETHYL BUTYL ETHER |
1179 |
3 |
|
0.76 |
T4, TP1 |
ETHYL BUTYRATE |
1180 |
3 |
|
0.87 |
T2, TP1 |
ETHYL CHLORO ACETATE |
1181 |
6.1 |
3 |
1.16 |
T7, TP2 |
ETHYLENE DIAMINE |
1604 |
8 |
3 |
0.96 |
T7, TP2 |
ETHYLENE GLYCOL MONOETHYL ETHER |
1171 |
3 |
|
0.93 |
T2, TP1 |
ETHYLENE GLYCOL MONOETHYL ETHER ACETATE |
1172 |
3 |
|
0.97 |
T2, TP1 |
ETHYLENE GLYCOL MONOMETHYL ETHER |
1188 |
3 |
|
0.97 |
T2, TP1 |
ETHYLENE GLYCOL MONOMETHYL
|
1189 |
3 |
|
1.01 |
T2, TP1 |
ETHYL HEX ALDEHYDE |
1191 |
3 |
|
0.82 |
T2, TP1 |
ETHYL PROPIONATE |
1195 |
3 |
|
0.90 |
T4, TP1 |
FLUORO ANILINES |
2941 |
6.1 |
|
1.17 |
T4, TP1 |
FLUORO BENZENE |
2387 |
3 |
|
1.02 |
T4, TP1 |
FLUORO TOLUENES |
2388 |
3 |
|
1.00 |
T4, TP1 |
FORMALDEHYDE (SOLUTIONS) (РАСТВОРЫ) |
1198 |
3 |
|
0.8250 |
T4, TP1 |
FORMIC ACID МУРАВЬИНАЯ КИСЛОТА |
1779 |
8 |
|
1.22 |
T7, TP2 |
FUEL,AVIATION, АВИАЦИОННОЕ ТОПЛИВО |
1863 |
3 |
|
0.80 |
T2, TP1 |
FURFURAL |
1199 |
3 |
|
1.16 |
T7, TP2 |
FURFURYL ALCOHOL |
2874 |
6.1 |
|
1.13 |
T4, TP1 |
FURFURYL AMINE |
2526 |
3 |
8 |
1.13 |
T4, TP1 |
GLYCEROL-ALPHA- MONOCHLOROHYDRINE |
2689 |
6.1 |
|
1.26 |
T4, TP1 |
HEPTANE |
1206 |
3 |
|
0.68 |
T4, TP1 |
1 - HEXENE |
2370 |
3 |
|
0.67 |
T4, TP1 |
HEXALDEHYDE |
1207 |
3 |
|
0.84 |
T2, TP1 |
HEXA METHYLENE DIAMINE |
1783 |
8 |
|
0.87 |
T4, TP1 |
HEXANES |
1208 |
3 |
|
0.66 |
T4, TP1 |
HEXANOLS |
2282 |
3 |
|
0.82 |
T2, TP1 |
ISOBUTANOL |
1212 |
3 |
|
0.81 |
T2, TP1 |
ISOBUTYL ACRYLATE |
2527 |
3 |
|
0.87 |
T2, TP1 |
ISOBUTYL METHACRYLATE |
2283 |
3 |
|
0.86 |
T2, TP1 |
ISOBUTYL PROPIONATE |
2394 |
3 |
|
0.89 |
T2, TP1 |
ISOBUTYL ACETATE |
1213 |
3 |
|
0.87 |
T4, TP1 |
ISOBUTYL AMINE |
1214 |
3 |
8 |
0.74 |
T7, TP1 |
ISOBUTYR ALDEHYDE |
2045 |
3 |
|
0.79 |
T4, TP1 |
ISOBUTYRIC ACID |
2529 |
3 |
8 |
0.95 |
T4, TP1 |
ISOHEPTENE |
2287 |
3 |
|
0.70 |
T4, TP1 |
ISOHEXENE |
2288 |
3 |
|
0.66 |
T11, TP1 |
ISOOCTENE |
1216 |
3 |
|
0.69 |
T4, TP1 |
ISOPRENE |
1218 |
3 |
|
0.689 |
T11, TP2 |
ISOPROPANOL |
1219 |
3 |
|
0.79 |
T4, TP1 |
ISOPROPENYL ACETATE |
2403 |
3 |
|
0.88 |
T4, TP1 |
ISOPROPENYL BENZENE |
2303 |
3 |
|
1.02 |
T2, TP1 |
ISOPROPYL BUTYRATE |
2405 |
3 |
|
0.88 |
T2, TP1 |
ISOPROPYL ISOBUTYRATE |
2406 |
3 |
|
0.88 |
T4, TP1 |
ISOPROPYL PROPIONATE |
2409 |
3 |
|
0.87 |
T4, TP1 |
ISOPROPYL ACETATE |
1220 |
3 |
|
0.87 |
T4, TP1 |
ISOPROPYL AMINE |
1221 |
3 |
8 |
0.69 |
T11, TP2 |
ISOPROPYLBENZENE |
1918 |
3 |
|
0.86 |
T2, TP1 |
KEROSENE КЕРОСИН |
1223 |
3 |
|
0.84 |
T2, TP2 |
MERCAPTAN (смеси) |
1228 |
3 |
6.1 |
1.00 |
T7, TP1, TP28 |
MESITYL OXIDE |
1229 |
3 |
|
0.87 |
T2, TP1 |
METHACRYL ALDEHYDE |
2396 |
3 |
6.1 |
1.02 |
T7, TP1, TP13 |
METHACRYLIC ACID МЕТАКРИЛОВАЯ КИСЛОТА |
2531 |
8 |
|
1.0253 |
T7, TP1, TP18, TP30 |
METHANOL |
1230 |
3 |
6.1 |
0.79 |
T7, TP2 |
METHYL ALLYL CHLORIDE |
2554 |
3 |
|
1.09 |
T4, TP1, TP13 |
METHYL CYCLOHEXANE |
2296 |
3 |
|
0.77 |
T4, TP1 |
METHYL CYCLOHEXANONE |
2297 |
3 |
|
0.92 |
T2, TP1 |
METHYL ISOBUTYL CARBINOL |
2053 |
3 |
|
0.81 |
T2, TP1 |
METHYL PROPYL ETHER |
2612 |
3 |
|
0.74 |
T7, TP2 |
METHYL-2-CHLOROPROPIONATE |
2933 |
3 |
|
1.11 |
T2, TP1 |
METHYL ACETATE |
1231 |
3 |
|
0.93 |
T4, TP1 |
METHYL ACRYLATE |
1919 |
3 |
|
0.96 |
T4, TP1, TP13 |
METHYLAL |
1234 |
3 |
|
0.87 |
T7, TP2 |
METHYL AMYL ACETATE |
1233 |
3 |
|
0.89 |
T2, TP1 |
METHYL BUTYRATE |
1237 |
3 |
|
0.90 |
T4, TP1 |
METHYL CYANIDE |
1648 |
3 |
6.1 |
1.05 |
T7, TP2 |
METHYL CYCLOHEXANOLS |
2617 |
3 |
|
0.94 |
T2, TP1 |
METHYL CYCLOPENTANE |
2298 |
3 |
|
0.73 |
T4, TP1 |
METHYL FORMATE |
1243 |
3 |
|
0.98 |
T11, TP2 |
METHYL ISOBUTYL KETONE |
1245 |
3 |
|
0.800 |
T4, TP1 |
METHYL ISOPROPENYL KETONE |
1246 |
3 |
|
0.82 |
T4, TP1 |
METHYL ISOVALERATE |
2400 |
3 |
|
0.888 |
T4, TP1 |
METHYL METHACRYLATE |
1247 |
3 |
|
0.94 |
T4, TP1 |
4-METHYL MORPHOLINE |
2535 |
3 |
|
1.00 |
T7, TP1 |
METHYL PENTADIENE |
2461 |
3 |
|
0.70 |
T4, TP1 |
METHYL PROPIONATE |
1248 |
3 |
|
0.91 |
T4, TP1 |
METHYL PROPYL KETONE |
1249 |
3 |
|
0.81 |
T4, TP1 |
METHYL TETRAHYDRO FURAN |
2536 |
3 |
|
0.94 |
T4, TP1 |
METHYL TRICHLORO SILANE |
1250 |
3 |
8 |
1.28 |
T11, TP2 |
METYL BUTYL ETHER |
2398 |
3 |
|
0.76 |
T7, TP1 |
MOTOR SPIRIT МОТОРНОЕ ТОПЛИВО |
1203 |
3 |
|
1.00 |
T4, TP1 |
N,N-DIETHYL ANILINE |
2432 |
3 |
|
0.94 |
T4, TP1 |
N,N-DIETHYL ETHYLENE DIAMINE |
2685 |
8 |
3 |
1.18 |
T7, TP2 |
N,N-DIMETHYL ANILINE |
2253 |
8 |
|
0.96 |
T7, TP2 |
N,N-DIMETHYL CYCLOHEXYL AMINE |
2264 |
6.1 |
3 |
0.87 |
T7, TP2 |
N,N-DIMETHYL FORMAMIDE |
2265 |
8 |
|
1.23 |
T2, TP2 |
N-AMINO ETHYL PIPERAZINE |
2815 |
8 |
|
1.00 |
T4, TP1 |
N-BUTYL ANILINE |
2738 |
6.1 |
|
0.955 |
T7, TP2 |
N-ETHYL-N-BENZYL ANILINE |
2274 |
6.1 |
|
0.95 |
T4, TP1 |
N-ETHYL ANILINE |
2272 |
6.1 |
|
0.96 |
T4, TP1 |
N-ETHYL BENZYL TOLUIDINES |
2753 |
6.1 |
|
0.94 |
T7, TP1 |
N-ETHYL TOLUDINES |
2754 |
6.1 |
3 |
0.94 |
T7, TP2 |
N-METHYL ANILINE |
2294 |
6.1 |
|
0.99 |
T4, TP1 |
N-METHYL BUTYL AMINE |
2945 |
3 |
8 |
0.74 |
T7, TP1 |
N-BUTYL IMIDAZOLE |
2690 |
6.1 |
|
1.04 |
T7, TP2 |
NAPHTHYL AMINE |
2077 |
6.1 |
|
1.12 |
T4, TP3 |
NICOTINE SULPHATE |
1658 |
6.1 |
|
1.01 |
T7, TP2 |
NITRO ANISOLES |
2730 |
6.1 |
|
1.25 |
T4, TP1 |
NITRO BENZENE |
1662 |
6.1 |
|
1.20 |
T7, TP2 |
NITRO ETHANE |
2842 |
3 |
|
1.07 |
T2, TP1 |
NITRO PROPANES |
2608 |
3 |
|
0.99 |
T2, TP1 |
NITRO TOLUENES |
1664 |
6.1 |
|
1.16 |
T7, TP2 |
NITRO XYLENES |
1665 |
6.1 |
|
1.14 |
T7, TP2 |
NONANES |
1920 |
3 |
|
0.72 |
T2, TP1 |
N-BUTYL METHACRYLATE |
2227 |
3 |
|
0.90 |
T2, TP1 |
N-DECANE |
2247 |
3 |
|
0.73 |
T2, TP1 |
N-HEPTENE |
2278 |
3 |
|
0.700 |
T4, TP1 |
OCTADIENE |
2309 |
3 |
|
0.77 |
T4, TP1 |
OCTANE |
1262 |
3 |
|
0.70 |
T4, TP1 |
ORTHO-ANISIDINE |
2431 |
6.1 |
|
1.09 |
T4, TP1 |
PARALDEHYDE |
1264 |
3 |
|
0.99 |
T2, TP1 |
PENTAN-2,4-DIONE |
2310 |
3 |
|
0.98 |
T4, TP1 |
PENTANES |
1265 |
3 |
|
0.63 |
T11, TP2 |
PETROLEUM CRUDE OIL НЕФТЬ СЫРАЯ |
1267 |
3
|
|
0.99 |
T2, TP1 |
PETROLEUM DISTILLATES, N.O.S. ДИСТИЛЛЯТЫ НЕФТИ |
1268 |
3 |
|
0.70 |
T7, TP1, TP8, TP9, TP28 |
PHENETIDINES(ORTHO,PARA-) |
2311 |
6.1 |
|
1.00 |
T4, TP1 |
PHENOL SOLUTIONS ФЕНОЛ (растворы) |
2821 |
6.1 |
|
1.06 |
T7, TP2 |
PHENOLSULPHONIC ACID |
1803 |
8 |
|
1.16 |
T7, TP2 |
PHENYL ACETO NITRILE |
2470 |
6.1 |
|
1.02 |
T4, TP1 |
PHENYL ACETYL CHLORIDE |
2577 |
8 |
|
1.17 |
T7, TP2 |
PHENYL HYDRAZINE |
2572 |
6.1 |
|
1.10 |
T7, TP2 |
PICOLINES |
2313 |
3 |
8 |
0.96 |
T4, TP1 |
PINE OIL |
1272 |
3 |
|
1.00 |
T2, TP1 |
PIPERAZINE (65% водный раствор) |
2579 |
8 |
|
1.03 |
T4, TP3 |
PROPANE THIOLS |
2402 |
3 |
|
0.84 |
T4, TP1, TP13 |
PROPANOL |
1274 |
3 |
|
0.80 |
T4, TP1 |
PROPIL CHLORIDE |
1278 |
3 |
|
0.89 |
T7, TP2 |
PROPION ALDEHYDE |
1275 |
3 |
|
0.81 |
T7, TP1 |
PROPIONIC ACID ПРОПИОНОВАЯ КИСЛОТА |
1848 |
8 |
3 |
1.14 |
T4, TP1 |
PROPIONIC ANHYDRIDE |
2496 |
8 |
|
0.81 |
T4, TP1 |
PROPION NITRILE |
2404 |
3 |
6.1 |
0.78 |
T7, TP1, TP13 |
PROPYL BENZENE |
2364 |
3 |
|
0.86 |
T2, TP1 |
PROPYL ACETATE |
1276 |
3 |
|
0.89 |
T4, TP1 |
PROPYL AMINE |
1277 |
3 |
8 |
0.71 |
T7, TP1 |
PROPYLENE DIAMINE |
2258 |
8 |
3 |
0.88 |
T7, TP2 |
PROPYLENE DICHLORIDE |
1279 |
3 |
|
1.16 |
T4, TP1 |
PROPYLENE OXIDE |
1280 |
3 |
|
0.86 |
T11, TP2, TP7 |
PROPYLENE TETRAMER |
2850 |
3 |
|
0.78 |
T2, TP1 |
PYRIDINE |
1282 |
3 |
8 |
0.98 |
T4, TP2 |
PYRROLIDINE |
1922 |
3 |
|
0.85 |
T7, TP1 |
SHALE OIL МАСЛО СЛАНЦЕВОЕ |
1288 |
3 |
|
1.05 |
T2, TP1 |
STYRENE MONOMER,INHIBITED |
2055 |
3 |
|
0.91 |
T2, TP1 |
TERPENE HYDROCARBONS,N.O.S. |
2319 |
3 |
|
0.94 |
T4, TP1, TP29 |
TERPINOLENE |
2541 |
3 |
|
0.86 |
T2, TP1 |
TETRA ETHYL SILICATE |
1292 |
3 |
|
0.76 |
T2, TP1 |
TETRA HYDROFURAN |
2056 |
3 |
|
0.89 |
T4, TP1 |
TETRA HYDROFURFURYL AMINE |
2943 |
3 |
|
1.13 |
T2, TP1 |
TETRA METHYL AMMONIUM HYDROXIDE |
1835 |
8 |
|
1.17 |
T7, TP2 |
THIO GLYCOL |
2966 |
6.1 |
|
1.18 |
T7, TP2 |
THIO PHENE |
2414 |
3 |
|
1.06 |
T4, TP1 |
TOLUENE ТОЛУОЛ |
1294 |
3 |
|
0.87 |
T4, TP1 |
TOLUIDINES |
1708 |
6.1 |
|
0.99 |
T7, TP2 |
TRIALLYL AMINE |
2610 |
3 |
8 |
0.76 |
T4, TP1 |
TRIBUTYL AMINE |
2542 |
8 |
|
0.78 |
T7, TP2 |
TRICRESYL PHOSPHATE |
2574 |
6.1 |
|
1.07 |
T7, TP2 |
TRIETHYL PHOSPHITE |
2323 |
3 |
|
0.97 |
T2, TP1 |
TRIETHYL AMINE |
1296 |
3 |
8 |
0.72 |
T7, TP1 |
TRI ISOBUTYLENE |
2324 |
3 |
|
0.76 |
T4, TP1 |
TRI METHYL BORATE |
2416 |
3 |
|
0.92 |
T7, TP1 |
TRI METHYL PHOSPHITE |
2329 |
3 |
|
1.20 |
T2, TP1 |
TRI METHYL AMINE (водные растворы) |
1297 |
3 |
8 |
0.67 |
T11, TP1 |
TRI METHYL CHLORO SILANE |
1298 |
3 |
8 |
0.86 |
T7, TP2, TP13 |
TRI METHYL ETHYLENE |
2460 |
3 |
|
0.71 |
T7, TP1 |
TRI PROPYL AMINE |
2260 |
3 |
8 |
0.76 |
T4, TP1 |
TURPENTINE |
1299 |
3 |
|
0.83 |
T2, TP1 |
TURPENTINE SUBSTITUTE |
1300 |
3 |
|
0.83 |
T2, TP1 |
UNDECANE |
2330 |
3 |
|
0.74 |
T2, TP1 |
VALERALDEHYDE |
2058 |
3 |
|
0.81 |
T4, TP1 |
VALERYL CHLORIDE |
2502 |
8 |
3 |
1.02 |
T7, TP2 |
VINYL CHLOROACETATE |
2589 |
6.1 |
3 |
1.16 |
T7, TP2 |
VINYL TOLUENES |
2618 |
3 |
|
0.87 |
T2, TP1 |
VINYL ACETATE |
1301 |
3 |
|
0.93 |
T4, TP1 |
VINYL ETHYL ETHER |
1302 |
3 |
|
0.76 |
T11, TP2 |
VINYL ISOBUTYL ETHER |
1304 |
3 |
|
0.75 |
T4, TP1 |
XYLENES |
1307 |
3 |
|
0.88 |
T2, TP1 |
XYLIDINES |
1711 |
6.1 |
|
0.99 |
T7, TP2 |
|
|
Контейнер-цистерна Т11-25Н-01. Виды сбоку
|
|
Контейнер-цистерна Т11-25Н-01. Виды сверху и с торцов
Контейнеры-цистерны Т11-25Н-01 в заводском цеху Осиповичского вагоностроительного завода
(Республика Беларусь)
UN T11_Т11-25Н-01 Вернуться в список статей
